Mortar pump price depends on the exact machine and the route the material must follow. A wall-finishing contractor should compare model output, maximum material pressure, particle limit, motor, hose package, spray-air requirement, accessories, packing and destination. A main-unit total is incomplete when the crew still needs hose, gun, connections or a compatible compressor.
YG’s published product table separates three models. YG-311 lists 3 cubic metres per hour, 3 MPa, a 4 kW motor, particles below 4 mm, 30 m horizontal and 20 m vertical conveying, a 60 L hopper and 200 kg weight. YG-318 and YG-711 have their own output, electrical, hopper, distance and weight values in the table below.
Use the mortar sprayer machine range to compare material limits and workflow before evaluating the final package total.
Mortar Pump Price by Model and Wall Conveying Task
Define the material and site before asking for a model. Send the mortar product name or recipe, maximum aggregate, additives, working time and mixing method. Map the horizontal hose run, vertical lift, bends, floor changes and final application point. These inputs determine whether the quoted machine can form a workable system.
Separate conveying from spraying. Some jobs move mortar to a receiving point, while others need a spray gun and compressed air at the wall. State the finishing method and crew size. The same pump output can create a different mortar pump price when one project includes a compressor, mixer or longer hose route.
Send the project material, dimensions and work-zone conditions for an initial model review.
Compare Verified YG Mortar Pump Parameters

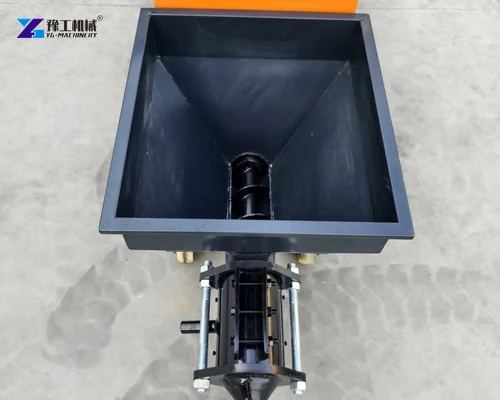

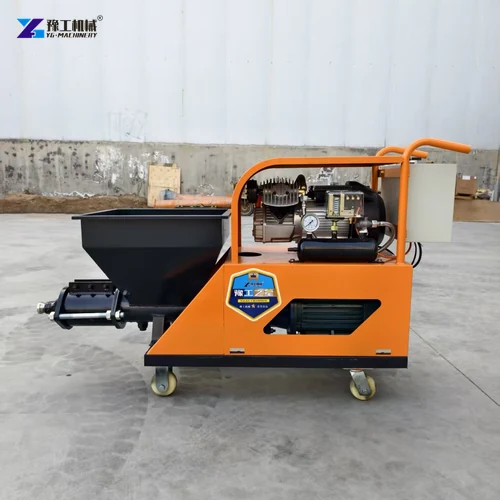

YG-311 has a listed 3 cubic metres per hour capacity, 3 MPa pressure, 4 kW motor, particle limit below 4 mm, 60 L hopper and 200 kg weight. Its listed supply is 220 or 380 V at 50 Hz, with 30 m horizontal and 20 m vertical conveying. Keep those values with YG-311.
YG-318 lists 3 to 5 cubic metres per hour, a 7.5 kW motor, 80 L hopper and 320 kg weight. YG-711 lists 4 to 6 cubic metres per hour, 7.5 kW, a 100 L hopper and 340 kg. Both list particles below 8 mm, 50 m horizontal and 30 m vertical conveying, 380 V three-phase 50 Hz and 0.3 cubic metres per minute air consumption.
How Material and Hose Route Change the Quote
Coarse aggregate, fibres or rapid-setting material can change machine compatibility and cleaning time. A supplier needs the actual material evidence before confirming the pump. Do not use extra water to force an unsuitable mix through the machine because it can change strength, sag and finish quality.

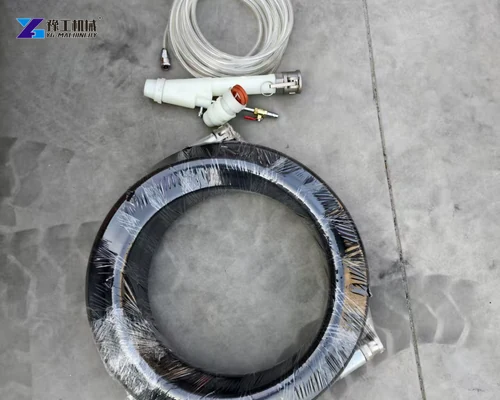

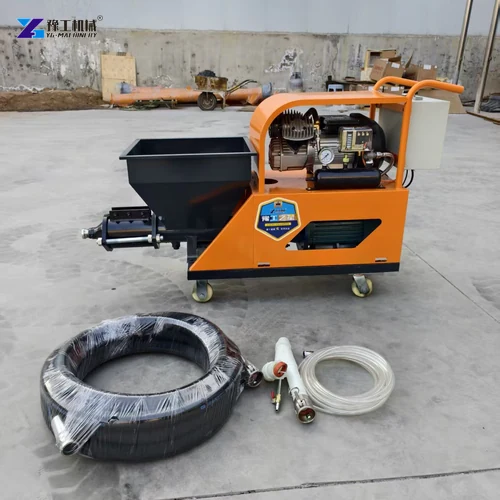

Long hoses, small diameters, tight bends and vertical rise add resistance and handling. Draw the route as installed, including supports and crossings. Ask the supplier to identify included hose length, diameter, clamps, connections and end tool. Additional hose should be priced as a compatible extension, not an unverified substitute.
| Product parameter | YG-311 | YG-318 | YG-711 |
| Capacity | 3 m3/h | 3-5 m3/h | 4-6 m3/h |
| Pressure | 3 MPa | 3 MPa | 3 MPa |
| Material ratio (water, ash, sand) | 0.7-1:1:3 | 0.7-1:1:3 | 0.7-1:1:3 |
| Voltage | 220/380 V 50 Hz | 380 V three-phase 50 Hz | 380 V three-phase 50 Hz |
| Main motor | 4 kW | 7.5 kW | 7.5 kW |
| Particle size | Below 4 mm | Below 8 mm | Below 8 mm |
| Horizontal conveying | 30 m | 50 m | 50 m |
| Vertical conveying | 20 m | 30 m | 30 m |
| Hopper volume | 60 L | 80 L | 100 L |
| Air consumption | 0.3 m3/min | 0.3 m3/min | 0.3 m3/min |
| Machine weight | 200 kg | 320 kg | 340 kg |
Parameter source checked against the YG cement plaster spray machine product page. Confirm the final ordered model and revision in the signed quotation.
Share the required model scope so YG can verify the product data and included components.
Include Compressor and Spares in Mortar Pump Price
When the project sprays mortar, compressed air shapes material at the nozzle. The listed 0.3 cubic metres per minute is a model reference, not the complete compressor selection. Confirm required pressure, delivered airflow, hose length and duty cycle with the final machine. State whether the compressor is buyer-supplied.

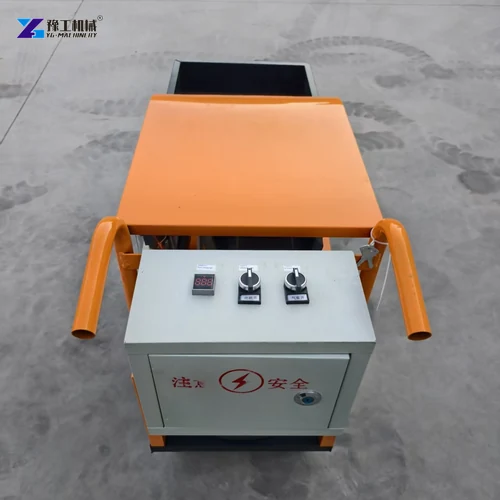

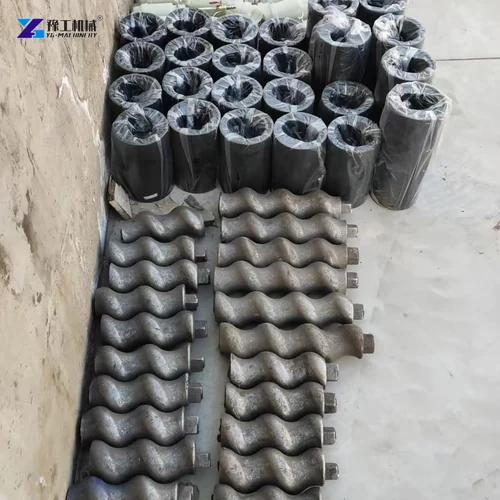

The quotation should also identify mixer, spray gun, nozzle, remote controls, cleaning tools and model-specific wear parts. Ask for exact quantities and part references. A generic accessory bundle makes it difficult to compare suppliers or reorder the correct seals, rotor-stator components or connections later.
Provide the accessory and utility requirements for a complete working-package review.
Use Batch and Packing Evidence for Freight Planning

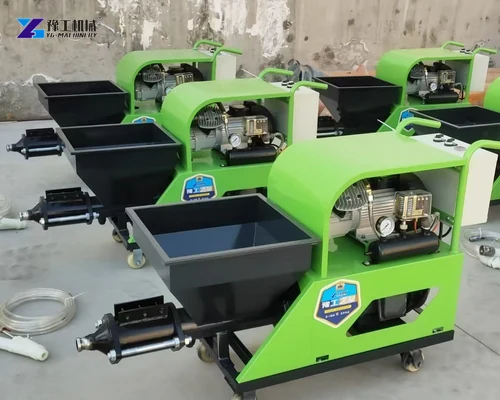

YG source photographs show real groups of machines, accessories and export crates. They support batch preparation and packing checks but do not prove a destination or operating result. For a multi-unit order, assign each hose and accessory set to a machine model and record quantities before the crates close.
Request machine dimensions, net weight, packed dimensions, gross weight and crate count for the final model. Separate equipment value, optional accessories, packing and freight. These lines make mortar pump price comparable after the destination and trade term are fixed.
Request a Comparable Mortar Pump Quotation
Send material data, required output, wall or receiving-point method, hose route, lift, utilities, compressor status, model quantity, spares, destination and delivery date. Include site photographs where access or cleaning-water disposal is restricted.
Ask the supplier to return the proposed YG model, exact product parameters, included accessories, exclusions, factory test, manuals, packing and lead time. A comparable mortar pump price should explain the entire wall-conveying package and keep every model value tied to the machine that carries it.
Send the final site, quantity and destination details for a configured quotation.
Mortar Pump Price FAQ for Long-Distance Wall Conveying
Output, motor, material limit and the included hose, gun, compressor or mixer change the supplied scope.
No. Material, thickness, hose route, vertical lift, work method, utilities and crew plan are also needed.
No. Confirm delivered airflow, pressure, duty cycle and hose conditions for the final spray package.
Provide model quantity, destination and trade term, then request final packed dimensions, gross weight and crate count.
