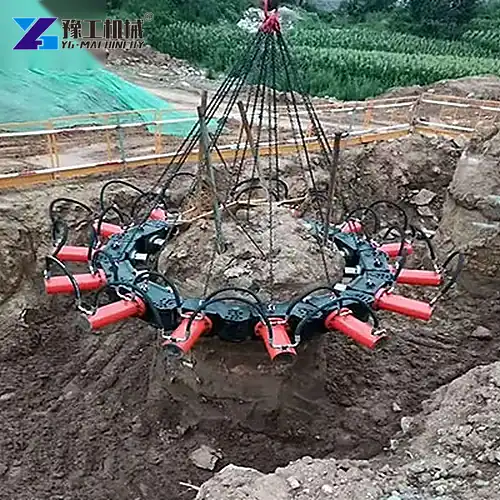

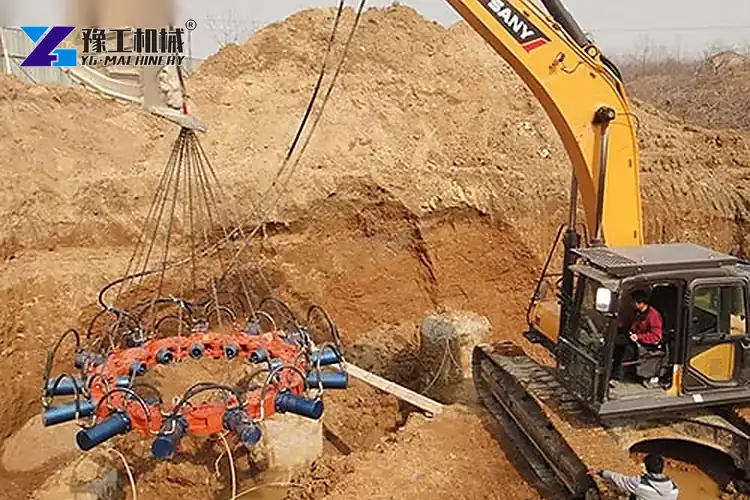

A hydraulic pile breaker removes the concrete above a foundation pile’s cut-off level by working around the pile rather than striking one point with a hand tool. The excavator positions the modular frame; hydraulic cylinders press the breaker elements against the concrete so it fractures in a controlled sequence. The practical fit depends on pile shape, exposed working space and the excavator’s hydraulic and mounting compatibility.
Planning pile-head removal? A pile drawing and excavator details help establish whether the breaker configuration fits the job.
REVIEW MY PILE BREAKER FITHow Does a Hydraulic Pile Breaker Remove Concrete?

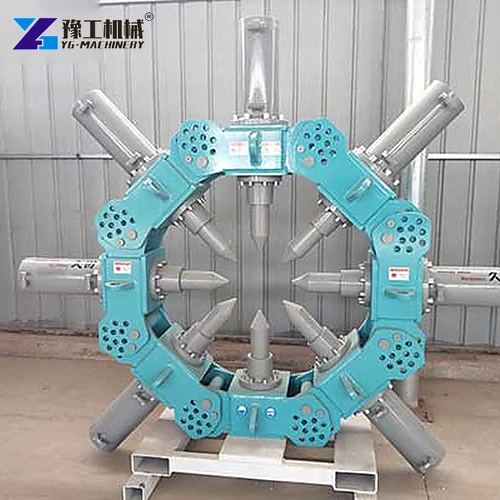

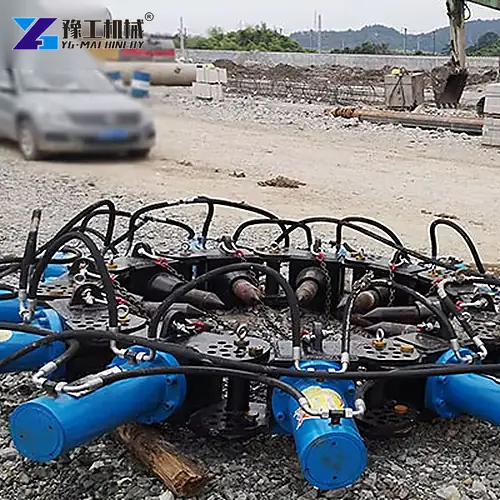

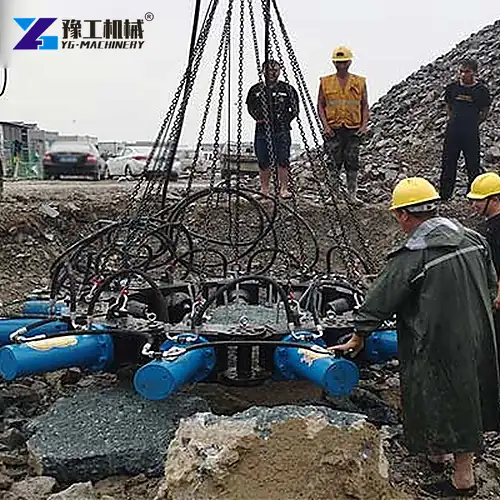

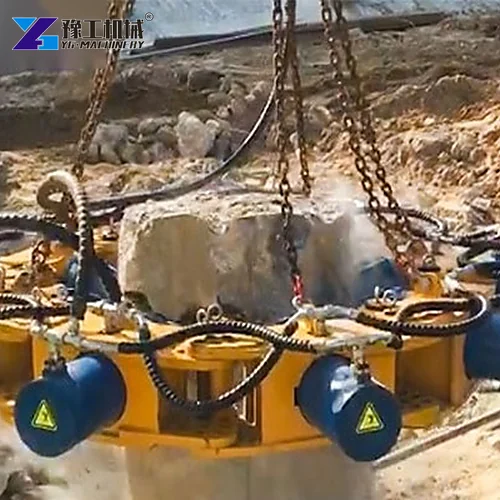

The frame is assembled around the pile and held in position by the carrier. Hydraulic cylinders then drive the breaker elements inward against the concrete. As the concrete cracks around the perimeter, the operator repositions or advances the attachment to work down toward the specified cut-off level. This distributed action is different from chipping one side at a time with a handheld breaker.
The goal is to remove unwanted concrete while leaving the pile ready for the next foundation operation. The actual finish still depends on the pile’s concrete condition, reinforcement layout, exposed length and the operator’s sequence. Do not assume the steel cage will remain undamaged: the work plan should identify the cut-off level and how concrete around the reinforcement will be cleared.
Which Foundation Jobs Suit a Hydraulic Pile Breaker?

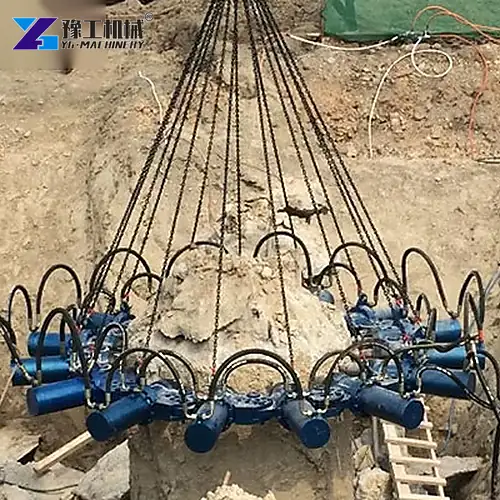

A pile breaker is a practical option when a project has repeated concrete pile heads to trim to a defined level and there is enough room to position the attachment around each pile. It can help standardize the breaking sequence across a foundation area, especially where a handheld method would require repeated work around each perimeter.
It is less suitable when the pile head is buried, access around the pile is blocked, the remaining pile is too short for the frame to engage, or the job needs a different cut profile. Check the rebar cage, adjacent piles, working platform and excavator approach before mobilizing. If only an isolated small area needs chipping, a pile breaker may be more equipment than the job needs.
If the pile head is crowded by reinforcement or nearby structures, review the working clearance before choosing the frame.
CHECK PILE ACCESS AND CLEARANCEWhat Does the Hydraulic Pile Breaker Diameter Range Tell You?

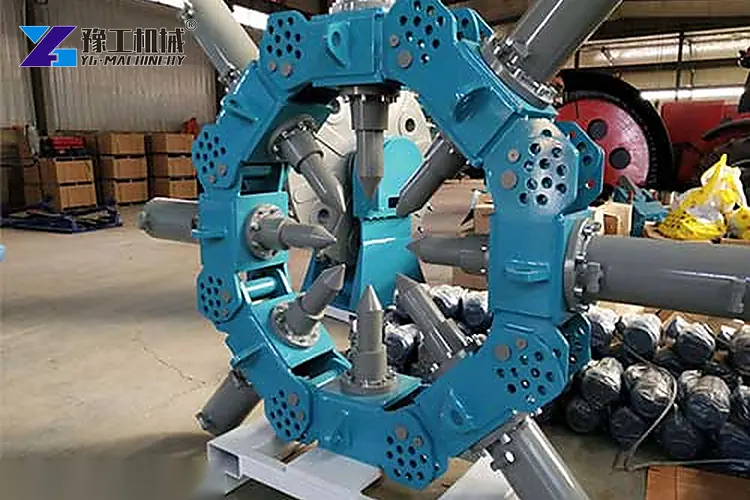

The standard modular product configurations cover round pile diameters from 400–2500 mm. The table below also lists module quantity, assembled weight and key component dimensions so you can make an initial comparison.
| Parameter | Standard configuration |
|---|---|
| Module quantity per configuration | 4–18 pieces |
| Round pile diameter | 400–2500 mm across configurations |
| Combined configuration weight | 1600–5940 kg |
| Maximum thrust | 300 kN |
| Maximum cylinder stroke | 300 mm |
| Chisel diameter | 110 mm |
| Single-module weight | 335 kg |
| Single-module dimensions (L × W × H) | 1015 × 865 × 340 mm |
The pile diameter and combined weight vary with the selected module arrangement. Use these values to compare the standard range, then confirm the module layout and carrier or power-station connection for the pile on your project. These are standard series specifications for initial comparison. The final specification sheet should match the configuration selected for your job before ordering.
For square, irregular or unusually reinforced sections, do not infer suitability from the round-pile range. Send the cross-section drawing and reinforcement layout so the clamp arrangement and working sequence can be checked against the actual pile.
What Can Prevent a Correct Pile Breaker Fit?
Three checks matter before a quote becomes a workable setup. First, the breaker frame must match the pile cross-section and leave enough space for the modules to engage. Second, the excavator needs a compatible hydraulic circuit, mount and stable working position. Third, the pile-breaking sequence must stop at the design elevation without obstructing the next operation, such as pile-cap or reinforcement work.
For planning the cut-off sequence, see pile head removal and module selection. To compare attachment configurations, review the excavator pile breaker product range. These pages support equipment selection; the pile drawing and carrier details still determine the configuration for your site.
What Should You Send When Requesting a Pile Breaker Quote?
- Pile cross-section drawing, material and exposed working length.
- Required cut-off level and how the exposed reinforcement will be handled.
- Excavator make and model, auxiliary hydraulic details and attachment interface.
- Photos showing pile spacing, nearby structures and the excavator’s approach route.
These details let the supplier check module layout and carrier compatibility before quoting. They also make it easier to identify a job where a pile breaker is not the right method.
Have the pile section and carrier details ready? Request a configuration review before comparing attachment prices.
REQUEST A CONFIGURATION REVIEW
If the pile section, cut-off elevation or carrier is still uncertain, confirm those points before planning the foundation sequence.
FINALIZE MY PILE BREAKER CONFIGURATIONWhat Do Buyers Ask About Hydraulic Pile Breakers?
Start with the pile cross-section and cut-off level. Then check module arrangement, exposed clearance, excavator hydraulics, mounting interface and the planned way to remove the broken concrete.
No. The stated range covers different modular configurations. The module layout must match the measured pile, and the selected assembly must also fit the carrier and site access.
The work can expose reinforcement, but the result depends on the pile detail and breaking sequence. Identify the cut-off elevation and cage layout, and do not assume the steel will be untouched.
Provide the excavator make and model, hydraulic circuit information, mounting dimensions and site photos. The supplier can compare those details with the selected breaker configuration.
