A mini road roller is a compact compaction machine. It presses soil, sand, gravel, or asphalt with a vibrating steel drum. This process makes surfaces denser, stronger, and longer-lasting. You often see it on driveways, parking lots, trench work, and patch repairs. Compared to big rollers, a compact roller is simpler to transport and works well in tight spots. At YG Machinery, we offer a road roller for sale that combines power with easy handling. Below, we explain how these machines work, compare types, and share our product advantages. Let us help you choose the right model.
YG Mini Road Roller Parameters
Below are the technical parameters of our four popular models. One model appears twice in the table with identical specs—this represents the same reliable YG-880 platform.
| Parameter | YG-600S | YG-880 | YG-850 | YG-880 |
| Power | 5.5HP | 25HP/20HP | 6.0HP | 25HP/20HP |
| Walk Speed | 2.4km/h | 0-5km/h | 0-4km/h | 0-5km/h |
| Climbing Capacity | 25% | 30% | 30% | 30% |
| Static Linear Load | 45N/cm | 45N/cm | 45N/cm | 45N/cm |
| Exciting Force | 20KN | 50KN | 20KN | 50KN |
| Vibration Frequency | 70Hz | 70Hz | 70Hz | 70Hz |
| Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive |
| Water Tank | 15L | 15L | 15L | 15L |
| Hydraulic Oil Tank | 3.6L | 19L | 3.6L | 19L |
| Engine Model | HONDA GX160 | GX390 | HONDA GX270 | GX390 |
| Steel Wheel Size | 426x600mm | 800x850mm | 580x700mm | 800x850mm |
| Package Size | 1050x900x1200mm | 2100x1000x1650mm | 1550x900x1200mm | 2100x1000x1650mm |
| Weight | 330kg | 1000kg | 750kg | 1000kg |
Note: Two YG-880 entries share the same specifications. This confirms the uniformity of our YG-880 series.
Core Components and Working Principle of a Road Roller
Key Components
A typical road roller consists of several critical parts:

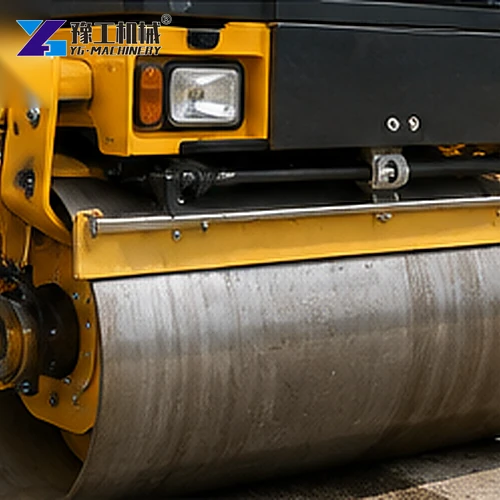

- Steel drum: The main compaction tool, smooth or padfoot style.
- Engine: Gasoline or diesel, powering both movement and vibration.
- Hydraulic system: Controls drive speed and drum vibration.
- Water tank: Keeps the drum moist to stop asphalt from sticking.

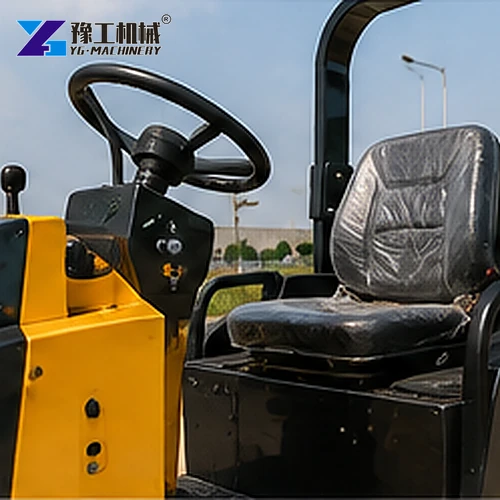

- Control handle or cabin: Allows the operator to steer and adjust vibration.
How It Works
The engine drives a hydraulic pump. That pump sends oil to the wheel motor and the vibration motor. The drum rotates and moves the machine forward or backward. At the same time, the vibration motor shakes the drum at a set frequency. This vibration forces particles in the material to rearrange. Air voids shrink, and the layer becomes solid and dense. The operator walks behind or sits on the roller, controlling direction and vibration with simple levers. It is a straightforward yet highly effective process.
Why Is Compaction Essential in Road Construction?
Without proper compaction, soil and asphalt layers settle unevenly. This leads to cracks, potholes, and early failure. Compaction increases the density of the material. It raises load-bearing capacity and reduces water penetration. In short, it extends the life of any pavement. A well-compacted base layer also provides a smooth, stable platform for the surface course. Builders rely on a road roller for sale to achieve the required density standards. Skimping on compaction means paying more for repairs later.
Different Types of Road Rollers and Their Differences
Road rollers vary by drum type, size, and application. Here is a quick comparison:
| Type | Drum Style | Best Use | Typical Weight |
| Single Drum Roller | One smooth or padfoot drum, rear tires | Soil, gravel, sub-base | 3–25 tons |
| Double Drum Roller | Two smooth drums, front and rear | Asphalt finishing, thin layers | 1–14 tons |
| Mini Roller | One or two small drums | Narrow areas, repairs, joints | 0.3–1.5 tons |
| Pneumatic Roller | Rubber tires instead of drums | Asphalt sealing, chip seal | 8–30 tons |
An asphalt road roller usually features two smooth drums and a water spray system. It works on hot mix asphalt without leaving marks. A compact roller can be a single or double drum, designed for agility. Choose based on material type, lift thickness, and working width.
Compact Roller: Equipment for Specific Projects
This compact machine truly shines in confined jobs. It handles tasks like:
- Filling and compacting trenches after utility work.
- Building residential driveways and walkways.
- Repairing small pothole patches and edges.
- Compacting inside warehouses and factory floors.
- Landscaping paths and bike lane bases.
Its low weight prevents damage to surrounding structures. Transport is simple on a small trailer. Many contractors keep a small road roller ready for quick, daily repairs. It boosts productivity without the expense of a full-size machine.
Why Choose YG Machinery Mini Rollers?
We build our machines with years of engineering experience. Here is what sets us apart:
- Reliable engines: Proven HONDA gasoline units deliver consistent power. Models with GX390 offer higher output for tough tasks.
- Strong hydraulic drive: Smooth, responsive control. Less maintenance than mechanical systems.
- Compact and maneuverable: Easy to use in tight spots. The vibration frequency of 70Hz ensures deep compaction.

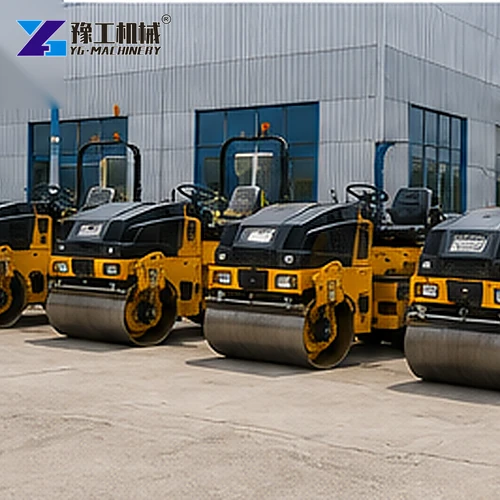

- Ready-to-ship inventory: We keep stock of core models. Quick delivery times help you start jobs faster.
- Comprehensive support: Our team provides operation tips, spare parts, and technical advice before and after your purchase.
We understand that every job is different. Our range covers lightweight 330kg units up to 1-ton models. If you need an asphalt road roller that also handles granular base, we have the right match.
FAQ About Mini Rollers
A double-drum unit with water spray works best. It leaves a smooth finish and prevents asphalt pickup. Our YG-880 model is a strong choice for patch crews.
First, check your compaction depth and material type. Then consider working width and weight restrictions. Loose soil often needs a higher exciting force. Asphalt jobs require a smooth drum and water system. Match the specifications to your typical project scale.
It can replace it for small-area jobs. This machine excels in confined spaces and shallow lifts. For thick layers or wide highways, larger rollers remain essential. The two complement each other on mixed sites.
Check engine oil, hydraulic fluid, and water spray nozzles daily. Clean the drum after each use to stop asphalt buildup. Follow the service schedule in your manual for long-term reliability.
Contact YG Machinery directly. We offer transparent pricing and can arrange shipping to your location. Our sales team helps you compare models and select the best configuration.
Explore YG Machinery’s Full Range of Road Construction Equipment
Beyond mini road rollers, we manufacture and supply other reliable machines. Our product line includes laser screeds for precision concrete leveling, line marking machines for clear road markings, and crack sealing machines for asphalt maintenance. Whether you need a single unit or a complete package, YG Machinery serves as your one-stop partner. Contact us today to request a quote, check availability, or ask technical questions. We are ready to support your next project with durable, cost-effective solutions.
