Are you searching for a reliable road line marking machine that paints crisp, long-lasting lines on any pavement? This essential equipment applies paint or thermoplastic material to create clear traffic lines, safety symbols, and parking boundaries. It works smoothly on asphalt, concrete, and other flat surfaces. At YG Machinery, we supply high-performance marking machines built for speed and accuracy. Our models suit parking lots, highways, warehouses, and more. Discover the right unit for your project below.
Two Main Types of Line Marking Equipment
Every road line marking machine falls into one of two categories: thermoplastic or cold paint. Both types deliver professional results, but they use different technologies. Your choice depends on line durability needs, surface conditions, and budget. Below, we explain each type in detail.

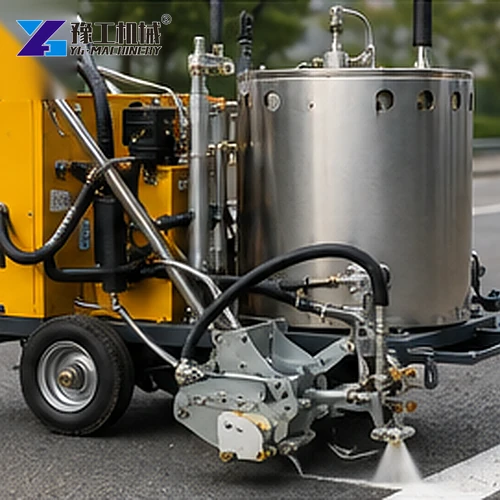

Thermoplastic Marking Machine
A thermoplastic road line marking machine melts solid marking material in a heated hopper. The molten mixture then flows onto the road through a shoe. You get thick, reflective lines that bond strongly with the surface. These lines withstand heavy traffic and harsh weather for up to three years or more. You add glass beads while the material is still hot to create instant night-time reflectivity. This machine works best for highways, crosswalks, airport runways, and any high-traffic area. With adjustable hopper widths from 10 cm to 45 cm, you can mark varying line sizes quickly. The large 120 kg paint bucket and 25 kg bead capacity reduce refilling stops.
Thermoplastic Marking Machine Parameters
| Parameter | Value |
| Model | Thermoplastic Road Marking Machine |
| Glass Beads Capacity | 25 kg |
| Paint Bucket Capacity | 120 kg |
| Hopper Width | 10 / 15 / 20 / 30 / 40 / 45 cm |
| Marking Thickness | 1.8 – 3.0 mm (adjustable) |
| Mark Width | 100 – 450 mm (adjustable) |
| Weight | 110 kg |
| Dimension | 1000 × 900 × 1100 mm |

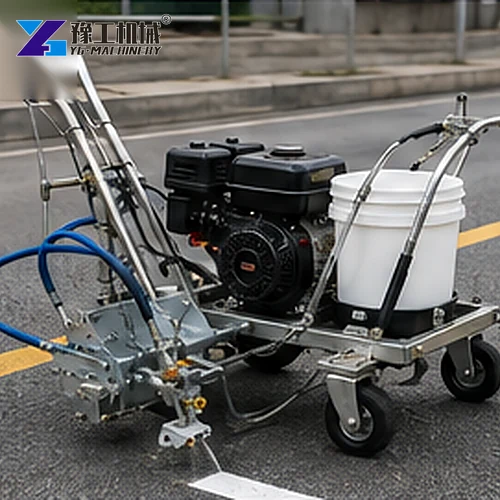

Cold Paint Marking Machine

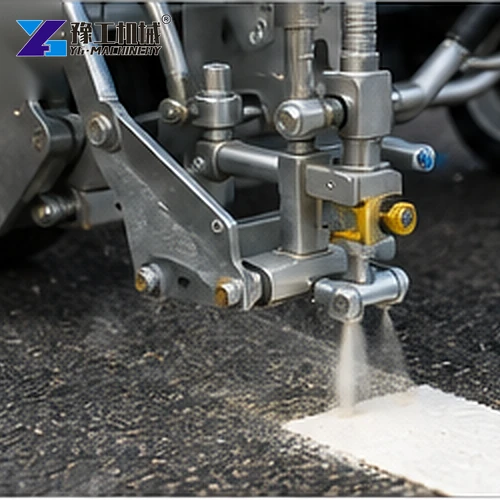

For many projects, a cold paint model offers the perfect balance of speed and simplicity. It uses a powerful airless spray system. You pour cold paint directly into the tank, without any heating. The high-pressure pump pushes paint through the spray gun, creating smooth, crisp edges. This road marking spray machine handles water-based, solvent-based, and acrylic paints. You can switch between single-gun and double-gun models. The YG-6L is lightweight and easy to maneuver in tight spaces. The YG-8L covers wider areas up to 45 cm in one pass. Adjust the pressure to control line thickness from thin parking lot stripes to bold warehouse lines.
Cold Paint Marking Machine Parameters
| Parameter | YG-6L Single Gun | YG-8L Double Gun |
| Load Flow | 6 L/min | 8 L/min |
| Maximum Output Pressure | 25 MPa | 30 MPa |
| Nozzle Standard Configuration | 15’’ / 17’’ | 15’’ / 17’’ |
| High-Pressure Pipe Strength | 35 MPa | 40 MPa |
| High-Pressure Pipe Length | Φ6 × 10 m | Φ6 × 2 m & Φ10 × 10 m |
| Weight | 72 kg | 128 kg |
| Maximum Spray Width | 20 cm | 45 cm |
| Engine Power | 4.3 HP | 7 HP |
Quick Comparison: Thermoplastic vs. Cold Paint
| Feature | Thermoplastic | Cold Paint |
| Heating Required | Yes | No |
| Line Thickness | 1.8 – 3.0 mm | Variable |
| Durability | High, long-lasting | Moderate, great for temporary marks |
| Typical Use | Highways, crosswalks | Parking lots, factory floors |
| Working Speed | Moderate | Fast |
| Material Cost | Higher | Lower |
If long-lasting, heavy-duty lines are your priority, choose a thermoplastic unit. If you need fast setup and easy operation on multiple small sites, a cold paint model suits you better. Many contractors own both types to cover all job types.
Where to Use Your Line Marking Equipment?
Road line marking machines serve a wide range of industries. Here are the most common applications where our customers rely on these machines:

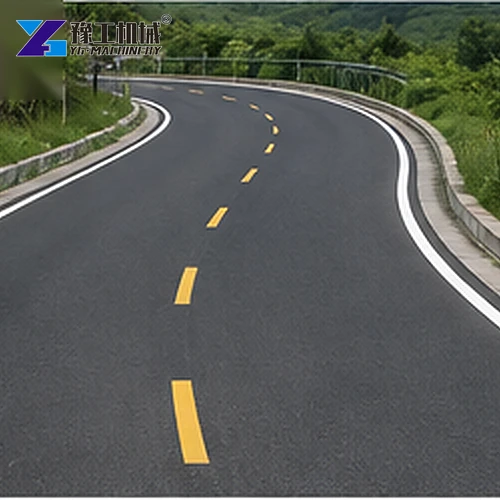

- Highways and urban roads: Apply durable center lines, edge lines, and lane markings that guide traffic safely.
- Parking lots and garages: Mark parking bays, directional arrows, and handicap symbols quickly.
- Factory and warehouse floors: Create 5S markings, forklift lanes, and pedestrian walkways for workplace safety.
- Airport runways and taxiways: Paint high-visibility markings that meet strict aviation standards.
- Sports courts and playgrounds: Line basketball courts, tennis courts, and game areas with bright colors.
- Logistics centers: Organize loading zones and traffic flow with clear floor markings.
Every location demands a specific line type. YG Machinery helps you select the best model for each environment.
Why Choose YG Machinery for Your Marking Needs?
When you search for a road marking machine for sale, you need a supplier you can trust. YG Machinery delivers quality, support, and real-world performance. Our team brings years of hands-on experience in road construction equipment manufacturing. We design each unit around your daily workflow.
- Proven Reliability: Each unit undergoes rigorous testing before leaving our factory. We check engine performance, spray pressure, and heating consistency. You receive a ready-to-work machine.
- Wide Selection: You find both thermoplastic and cold paint models in our inventory. Single-gun, double-gun, and various hopper sizes are available. No matter your project scale, we have the right match.
- Adjustable Parameters: Easily change marking width from 100 mm to 450 mm. Dial in the exact thickness. One machine adapts to multiple contract requirements.
- Solid Construction: We build frames from heavy-gauge steel. Engines come from trusted global partners. This combination means fewer breakdowns and lower long-term costs.
- Global Support: We ship our marking machines to clients in over 30 countries. Our support team provides video tutorials, manuals, and live technical assistance. Spare parts are always in stock.

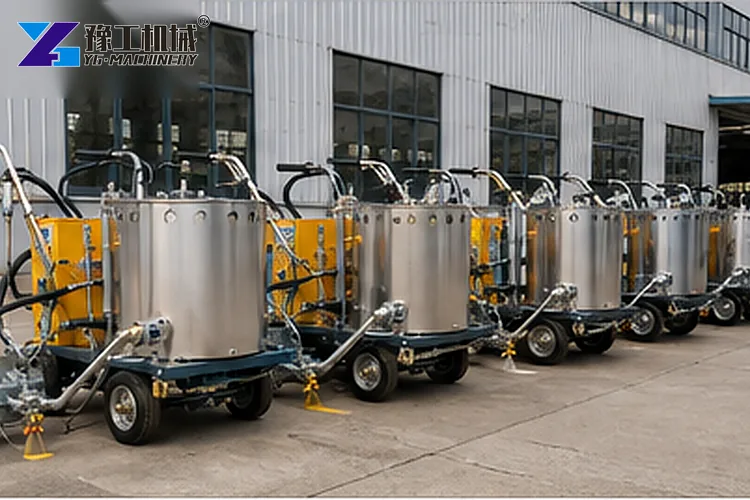

- Fast Delivery: Main models stay ready in our warehouse. Most orders ship within 7 working days. You can start your project on schedule.
We listen to feedback and improve continuously. Your project success drives our innovation.
FAQ About Line Marking Equipment
You can pick a thermoplastic or a cold paint model. A thermoplastic road line marking machine uses heat to apply thick, durable lines. A cold paint unit uses airless spray for fast, clean application. We help you decide based on your surface and traffic conditions.
Start by listing your most common marking tasks. For high-traffic roads, choose a thermoplastic unit. For parking lots or temporary lines, a cold paint marking machine is ideal. Also check the maximum width you need. Our paint marking machines handle widths from 100 mm to 450 mm. Contact our sales team with these details, and we will recommend the perfect model.
The YG-8L double-gun road marking spray machine covers up to 45 cm (450 mm) in a single pass. The single-gun YG-6L reaches 20 cm. You can adjust the spray width for narrower lines as needed. This flexibility saves time on large-scale projects.
Yes. Every road marking machine for sale includes a full support package. You receive operation training, maintenance guides, and easy access to spare parts. Our service team stays available long after your purchase.
We also manufacture laser screed machines for concrete leveling, road rollers for compaction, and crack filling machines for pavement repair. You can source a complete equipment set from one trusted partner. Ask us for a full catalog.
Explore More Road Construction Equipment from YG Machinery
While a quality road line marking machine handles your striping tasks, many paving projects need additional machinery. YG Machinery supplies a full lineup to keep your fleet productive. Our laser screed delivers ultra-flat floors for large warehouses and factories. The ride-on road roller achieves deep compaction on asphalt and soil. A crack filling machine seals joints and prevents water damage, extending pavement life. By choosing YG as your single supplier, you save time and ensure equipment compatibility.
Contact us today for a free, no-obligation quote. Describe your project scope, surface type, and line width requirements. Our experts will recommend the most suitable road line marking machine or complete package. We look forward to building a long-term partnership with you.
