Parking lots and factory roads often need fast setup, clean edges and frequent turning around bays, arrows and pedestrian zones. A cold paint road marking machine applies compatible water-based or solvent-based marking paint at ambient temperature, so the equipment decision centres on pump delivery, gun count, spray width, paint compatibility and operator control rather than a thermoplastic heating system.
YG offers compact single-gun and double-gun reference configurations. The correct choice is not simply the model with the larger number. Buyers should compare the widest normal line, whether two lines must be sprayed together, the paint and nozzle data, access between parked structures, planned daily area and the time available for flushing after each colour or material change.
If the project also includes hot-melt or two-component lines, compare material systems in the road line marking machine range before fixing the cold-paint package.
Start Cold Paint Road Marking Machine Selection with Paint Compatibility
Confirm the exact marking paint before selecting the pump, seals, hose and nozzle. Record whether the coating is water-based or solvent-based, its viscosity range, recommended tip, working pressure and cleaning method. The paint supplier’s data and local project specification control these choices. A machine maximum cannot replace the approved operating window for the selected material.
Map the parking layout into long bay lines, short end lines, arrows, numbers and pedestrian areas. Note the normal width and the widest marking. Tight islands and ramps favour a machine that turns easily, while long warehouse lanes can benefit from a wider or two-gun arrangement. This layout also shows where overspray control and temporary traffic closure are required.
Send the main project dimensions and material requirement for a model review.
REVIEW MY PROJECT REQUIREMENTS
Compare YG Cold Paint Road Marking Machine Models
The published YG-6L reference uses one gun, 6 L/min flow, 25 MPa maximum output pressure, a 20 cm maximum spray width, 4.3 HP engine and 72 kg machine weight. The YG-8L reference uses two guns, 8 L/min flow, 30 MPa maximum pressure, a 45 cm maximum spray width, 7 HP engine and 128 kg weight.
These values define a screening comparison. They do not mean every paint can be sprayed at maximum pressure or maximum width, and flow and pressure should not be treated as simultaneous guaranteed output without a test. A single gun can be the more practical choice for narrow, interrupted work. A double-gun model adds capacity where two lines or a wider working pattern are part of the normal project.
Match Cold Paint Road Marking Machine Width and Pressure

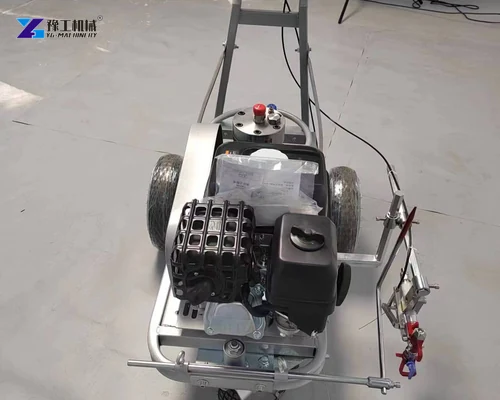

Line quality comes from the combined nozzle, pressure, gun height, paint condition and travel speed. Begin with the coating supplier’s recommended tip and pressure window. Run a measured test strip on a representative surface, then check width, edge definition, wet-film requirement and coverage. Change one variable at a time so the crew knows which setting corrected the result.
A wider fan can become thin or uneven if delivery does not support the selected speed. Excess pressure can increase wear and overspray without improving the accepted line. Record the approved nozzle, filter, pressure, gun height and pace for each recurring line type. The cold paint road marking machine should reproduce that field recipe after cleaning and setup.
| Published parameter | YG-6L single gun | YG-8L double gun |
| Delivery flow | 6 L/min | 8 L/min |
| Maximum output pressure | 25 MPa | 30 MPa |
| Standard nozzle reference | 15 / 17 | 15 / 17 |
| High-pressure hose strength | 35 MPa | 40 MPa |
| High-pressure hose length | Φ6 × 10 m | Φ6 × 2 m and Φ10 × 10 m |
| Maximum spray width | 20 cm | 45 cm |
| Engine power | 4.3 HP | 7 HP |
| Machine weight | 72 kg | 128 kg |
Plan Manoeuvring, Surface Preparation and Trial Lines
Remove loose dust, oil, standing water and weak old coating as required by the paint system. Repair or isolate surface defects that would distort the line. Premark the layout and identify safe start and stop points before bringing the cold paint road marking machine into the work area. This reduces corrections near curbs, columns and active traffic routes.

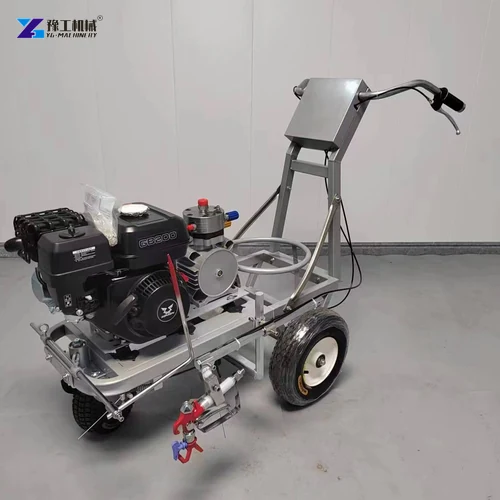

Test the equipment with the normal hose and gun arrangement. Verify that the operator can see the guide, keep the machine straight and turn without dragging hoses through wet paint. For a two-gun setup, measure both lines and their spacing. Approve the result before the crew begins the full parking or factory-floor sequence.
Control Filters, Flushing and Daily Maintenance
Paint residue and incompatible cleaning practice can block filters, tips and valves. Follow the coating and equipment instructions for pressure relief and flushing. Inspect the suction path, filter, hose, gun guard and nozzle before each shift. Replace damaged high-pressure components with correctly rated parts rather than temporary fittings.
Keep water-based and solvent-based material handling records separate where required. At a colour change, account for paint remaining in the line and collect cleaning waste under the site’s rules. A consistent shutdown routine protects the pump and makes the next startup more predictable. Include spare tips, filters, seals and other confirmed wear items in the procurement discussion.
Share the intended equipment scope so YG can check the configuration and included accessories.
Send the Data Needed for a Cold Paint Machine Quote
Provide the paint data sheet, normal and maximum line width, number of simultaneous lines, expected daily distance, surface type, site access, power or engine preference, colour-change frequency and destination. State whether a bead dispenser, line driver, extra hose, spare gun or additional nozzles are needed.
YG can then compare the single-gun and double-gun cold paint road marking machine options against the real work pattern. The quotation should identify the proposed model, included gun and hose package, confirmed operating limits, tools, spare parts, packing and test scope. This gives the buyer a complete basis for comparison and reduces last-minute accessory gaps before the first project.
Provide the final site and delivery details when you are ready for a complete quotation.
Cold Paint Road Marking Machine FAQ for Parking Lot Projects
Choose from the actual line plan. One gun suits interrupted narrow work; two guns help when paired lines are a regular task.
No. Set pressure with the paint, nozzle and target film, then verify the result on a test strip.
No. Thermoplastic requires a compatible heated-material applicator and preheater system.
Send paint data, line widths, gun pattern, daily distance, surface, access, cleaning method and destination.
