A GRC machine combines mortar delivery with glass-fibre chopping and spraying for glass fibre reinforced concrete, also called GFRC. The pump conveys the cement-based matrix while the cutter feeds short fibres into the spray stream at the gun. The operator builds the material onto a mould to form panels, facade details, columns, cornices or shaped landscape components. Pumping mortar alone is not the same process: the reinforcement feed and its distribution are part of the equipment selection.
GRC Spray Machine Parameters
Below you can find the key technical data for our standard spray unit.
| Product Name | Glass Fiber Reinforced Concrete GRC Spray Machine |
| Power | 2.2–4.0 kW |
| Voltage | 380 V, 50 Hz |
| Speed | 20–200 r/min |
| Workspace | 4.5 m |
| Delivery Capacity | 300–1600 kg/h |
| Production Efficiency | 200–400 m²/h |
| Volume | 60 L |
| Sprayer Dimension | 2000 × 1050 × 1600 mm |
| Mixer Dimension | 1550 × 1000 × 2100 mm |
| Total Weight | 800 kg |
Delivery capacity is a material mass per hour; sprayed area also depends on thickness and the deposition process. The published 200–400 m²/h entry is a nominal production figure, not a guaranteed finished-panel rate. It cannot be applied independently of the material, coating build-up, mould complexity and time spent consolidating and handling components.
These dimensions and ratings describe the configuration in this table. Other pump-and-mixer packages may have different motors, hopper sizes and output descriptions. Keep each package together when comparing quotations instead of combining the largest values from several versions.
Define the panel thickness and mould type when comparing this equipment package; area alone does not describe the production task.

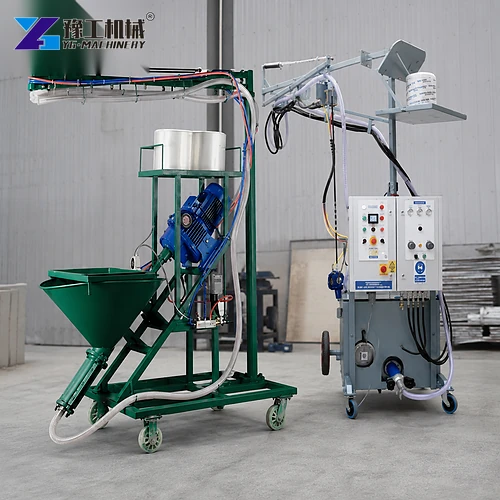

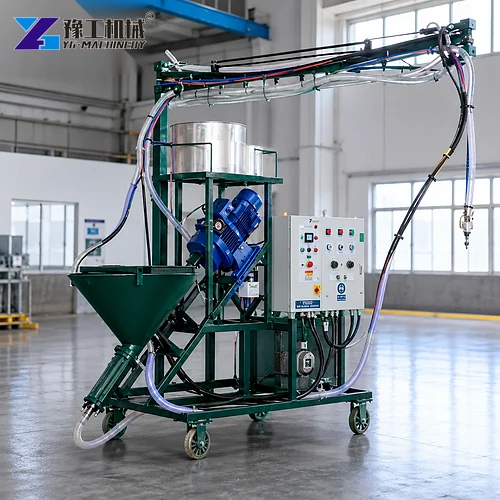

Main Components and Working Principle
Every efficient GFRC spray machine relies on four key parts that work together smoothly.
Core Components
- Mixer: prepares a homogeneous cement-based matrix using the specified sand, water and admixtures. Mixing consistency matters because changes in the matrix affect pumping and spraying.
- Screw pump: moves the compatible matrix through the delivery hose. Material grading, workability and cleaning affect delivery; no pump should be treated as immune to blockage.
- Spray gun and fibre cutter: bring the matrix stream and chopped fibre together during application. The cutter and feed arrangement must match the specified roving and reinforcement process.
- Controls and air supply: allow the delivery and spraying operation to be set for the equipment package. Confirm which air equipment and accessories are included rather than assuming the spray unit contains a compressor.
How It Works

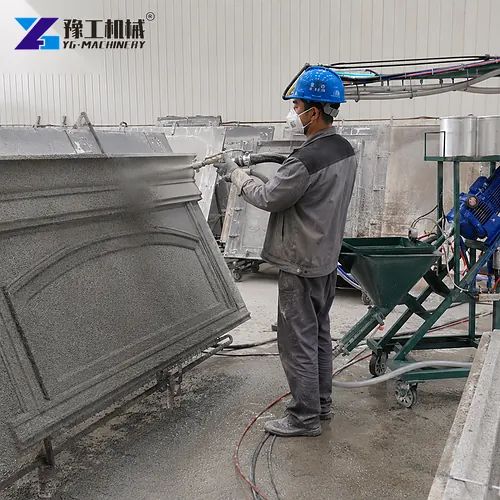

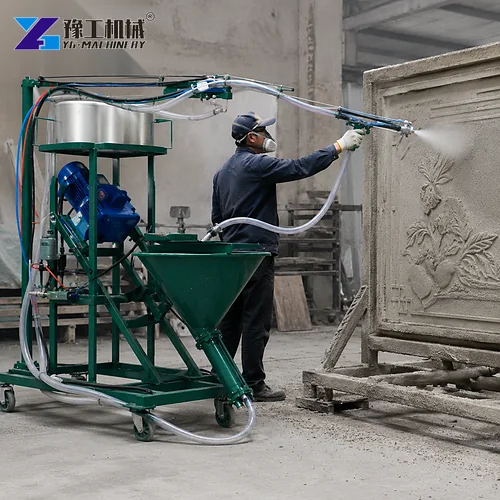

The mixer prepares the matrix and the pump transfers it to the gun. The cutter chops the roving as the operator sprays successive passes onto the mould. These are coordinated flows, not a guarantee that every part of the mould receives identical material. Feed settings, the operator’s movement and the sequence around corners all affect deposition.
Thickness checking, consolidation and the specified curing process remain separate production responsibilities. A deep return on a facade mould can need a different approach from a broad, flat panel face. Complete the face and edge build-up in a sequence that avoids obscuring unfilled areas; the mould detail and panel specification, not the pump’s maximum setting, determine the work.
For mortar-only wall work, compare the mortar sprayer machine; matrix delivery without the fibre-cutting arrangement is a different equipment task.
Send the mould section and reinforcement process so the matrix feed and fibre equipment can be discussed together.
GRC Machine Output for Flat Panels and Detailed Moulds
The value of a continuous spray arrangement is the coordinated delivery of matrix and reinforcement. Whether that improves finished output depends on what happens at the mould and in the following consolidation, curing and demoulding stages.
- Broad panel faces: long accessible passes can use material delivery differently from small decorative pieces. Finishing one large face does not predict the time needed for numerous separate moulds.
- Corners and returns: recesses interrupt the spray path and can make direct access difficult. Fibre placement and thickness need checking rather than assuming the gun removes all hand work.
- Reinforcement distribution: matrix and fibre settings must be checked as a combination. Increasing pump delivery without a corresponding process check can change the deposited mix.
- Material use: overspray depends on the target shape, gun handling and layout. No fixed waste percentage or saving against manual work applies to every production line.
- Crew and handling: spraying is only one operation. Mould preparation, consolidation, curing and lifting still require an appropriate work arrangement; a universal staffing reduction cannot be inferred from the machine.
- Finished output: compare accepted, demoulded components over the intended production schedule. A nominal sprayed-area figure does not establish panel strength or daily saleable output.
Identify whether the job is broad flat panels or detailed facade pieces before estimating finished output.
Why Choose YG’s GFRC Spray Machine?
YG Machinery builds every GRC machine with real-world factory experience. We listen to our customers and keep improving.
- Equipment scope: specify the mixer, pump, fibre cutter, gun and hose package separately so the quotation can be checked against the intended production arrangement.
- Configuration: match the electrical supply and material system to the selected equipment. A larger mixer or alternative motor is a configuration decision, not an interchangeable figure to borrow from another version.
- Commissioning: agree on the materials, mould and operating checks used to establish the starting settings. Training and documentation should cover the actual supplied controls.
- Service: identify the pump and cutter wear parts and agree on the support and spare-parts scope. Service response and delivery depend on the agreed terms and destination.
- Commercial comparison: compare equivalent packages, including air supply, freight and commissioning where applicable. A bare spray unit and a complete working package are not the same offer.
We also manufacture other wall construction machines. You can ask us about mortar spray machines, gypsum spray machines, and automatic wall rendering machines.
Ask for a component-by-component offer with the required air supply, accessories and service scope identified.
GRC Spray Machine FAQ
The mixer, pump, fibre cutter, gun, hoses and controls define the package. Confirm separately any air-supply equipment, commissioning, freight and spare parts before comparing quotations.
A spray-up GRC arrangement combines matrix delivery with a fibre cutter and reinforcement feed at the gun. A mortar-only sprayer does not by itself establish that capability.
It is a nominal production figure, not a finished-panel guarantee. Thickness, material, mould access, consolidation and handling affect the actual accepted output.
Do not assume so. Corners, returns and recesses affect access and deposition. Check the specified thickness, reinforcement distribution and consolidation across the complete mould.
Agree on a representative mould, the specified material and the supplied equipment configuration. Review the spray result together with thickness, consolidation and curing requirements rather than judging the pump in isolation.
GRC Spray Machine Price – YG Factory Direct
Compare the price of the GRC machine against a defined supply package: mixer, delivery unit, fibre equipment, gun, hoses and required controls. List optional equipment separately and confirm the support, training and spare-parts terms. This makes the quotation useful for a particular panel or facade mould rather than simply comparing two equipment totals.
Beyond GRC spraying, we offer complete wall construction solutions. Our mortar spray machines handle general plastering. Gypsum spray machines suit interior finishing. Automatic wall rendering machines work fast on large residential projects. Tell us your project needs, and we will recommend the best machine package for you.
Describe the product configuration and intended application for a specific equipment proposal.
