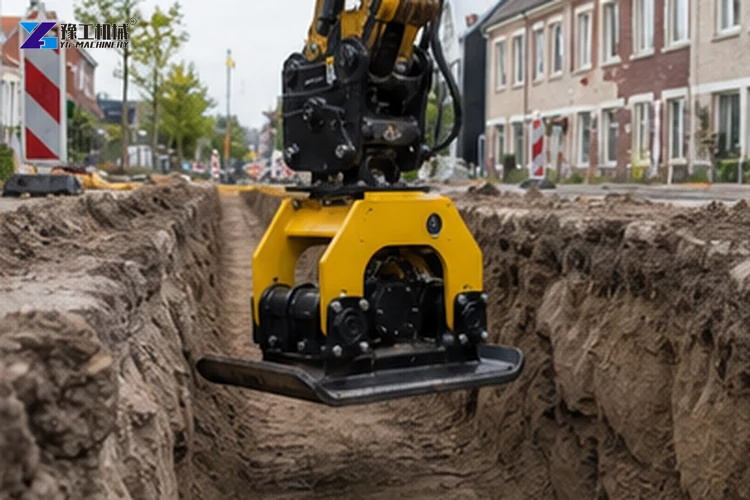

YG recorded two excavator plate compactor orders for customers in the Netherlands in May 2024. Repeated orders for the same product and market provide useful evidence of practical demand, while selection still needs to be project-specific. A compactor attachment must match the excavator, trench or surface dimensions, soil behavior and required lift thickness. A plate that fits the carrier but cannot reach the work or cover the trench efficiently is not the right configuration.
The YG review focused on how compaction would be performed, not simply on replacing a walk-behind machine. Excavator-mounted compaction can keep personnel away from trench edges and use the carrier’s reach, but the operator still needs a defined layer thickness, pass pattern and acceptance test. This case explains the information Dutch contractors should prepare.
Why Did The Dutch Projects Use Excavator-Mounted Compaction?
An excavator plate compactor is useful in trenches, around foundations, beside retaining structures and on slopes where a carrier can position the plate more safely than personnel can handle a separate machine. It can compact backfill in planned lifts and reduce additional equipment movements. The benefit is strongest when the excavator already performs excavation and backfilling and can change to the compactor efficiently.
The attachment does not guarantee density without a suitable method. Soil type, moisture, layer thickness, plate contact and the number of passes determine the result. Granular fill and cohesive soil respond differently to vibration. The contractor should use the project specification and field test method to define acceptance rather than relying only on attachment operating time.
What Site Measurements Controlled Plate Selection?
Trench width and clearance around pipes or structures determine usable plate dimensions. A wider plate can cover open areas efficiently but may bridge uneven surfaces or fail to enter a narrow trench. A smaller plate reaches confined zones but requires more passes. Buyers should provide minimum working width, normal area, obstructions and the depth below the excavator position.
Working depth affects carrier reach and stability. The attachment weight, coupler and boom geometry must remain within the excavator limits at the deepest and farthest point. On slopes, the machine position and direction of compaction require a site plan. Dutch projects with restricted urban access should also include transport width, noise conditions and working-hour limitations.
| Project Condition | What To Check | Selection Result |
| Narrow utility trench | Minimum width and pipe clearance | Plate width and side profile |
| Open backfill area | Coverage and pass spacing | Larger practical plate |
| Deep trench | Reach and load chart | Attachment mass and carrier position |
| Cohesive soil | Moisture and lift thickness | Test method and pass plan |
| Granular fill | Particle grading and confinement | Frequency and layer control |
| Slope or structure edge | Stability and access | Working direction and exclusion zone |
Provide YG with a section drawing or dimensions so plate size and carrier suitability can be reviewed together.
How Did YG Check The Excavator And Hydraulic Circuit?

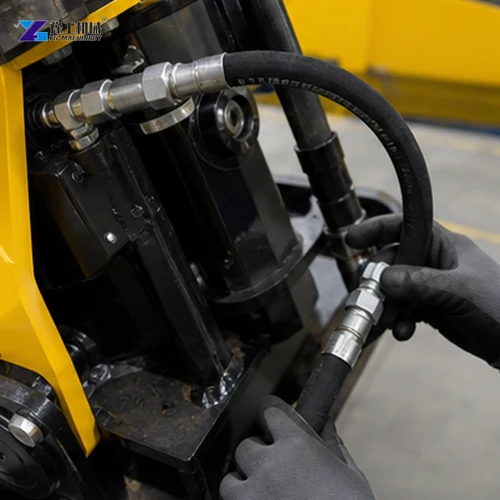

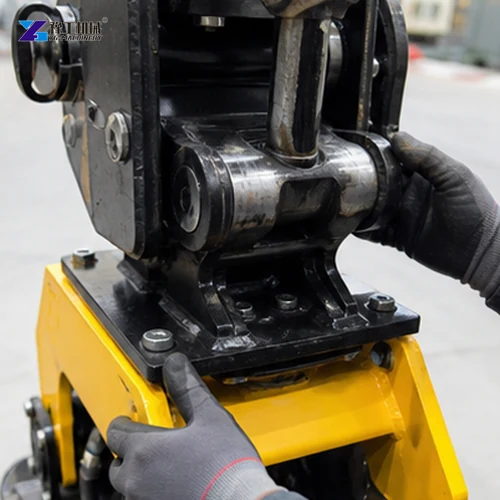

Carrier operating weight narrows the attachment range, while pin dimensions or quick-coupler details confirm physical fit. Auxiliary flow and pressure must support the vibration motor without overspeeding. Return conditions, hose size and routing affect temperature and reliability. The technical proposal should state the approved settings so another attachment’s hydraulic setup is not used by mistake.

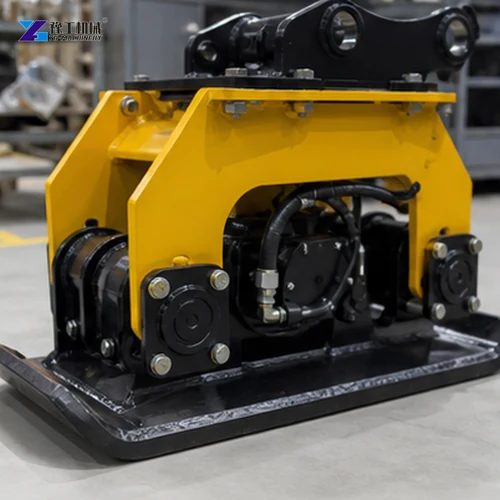

The bracket should allow the plate to sit flat while the operator applies controlled down force. Excess pressure can unload the excavator or prevent the plate from moving naturally over the surface. Hose length must accommodate the working angle without contacting the trench wall or linkage. Commissioning verifies these points before production.
Need help matching the configuration to your project? Send the working conditions and YG can review the practical equipment scope for Excavator Plate Compactor For Sale In The Netherlands.
What Compaction Procedure Was Required On Site?

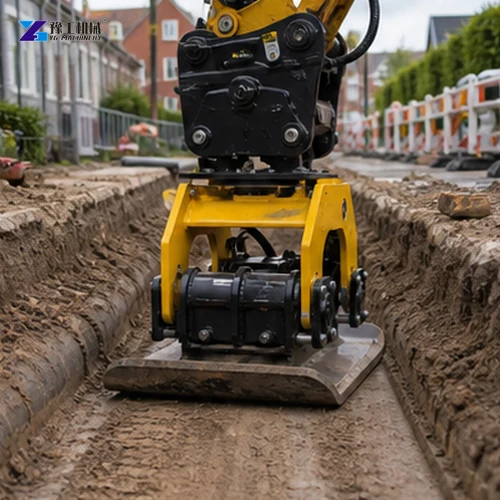

Backfill is placed in controlled lifts suitable for the soil and project specification. The operator lowers the plate squarely, follows an overlapping pass pattern and avoids striking pipes, chambers or unsupported edges. Lift thickness and pass count are established through the method statement and field results. If the surface pumps, ruts or remains unstable, the team should review moisture and material rather than adding unlimited passes.
Acceptance can use density testing, stiffness measurement or another specified method. The project team records material, moisture, lift thickness, passes and test location. These records turn the excavator plate compactor into part of a controlled quality process and allow adjustments when conditions change across the site.
Which Daily Checks Support Reliable Operation?

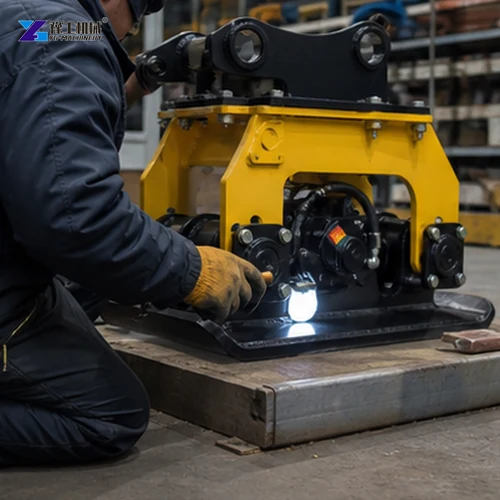

Inspect the plate, vibration housing, rubber isolation elements, bolts, bracket, pins, hoses and fittings before work. Remove compacted soil from areas where it can restrict movement or hide loose hardware. Grease linkage points as specified and watch for leaks, unusual noise or a change in vibration. Stop and inspect if the attachment no longer runs evenly.
The two Netherlands orders show that YG has supplied this attachment type to the market, but every new request should still define carrier and soil conditions. Buyers can review the YG mini digger attachments guide and mini excavator ripper guide when planning the sequence from loosening and backfilling to final compaction.
Excavator Plate Compactor For Sale In The Netherlands FAQ
No. Excavator size controls the carrier range, while trench width, clearance and required coverage determine practical plate dimensions.
Lift thickness depends on soil, moisture, compaction energy and the project specification. Confirm it through the approved method and field testing.
Provide available auxiliary flow, pressure, return arrangement, fittings and whether the circuit settings can be adjusted.

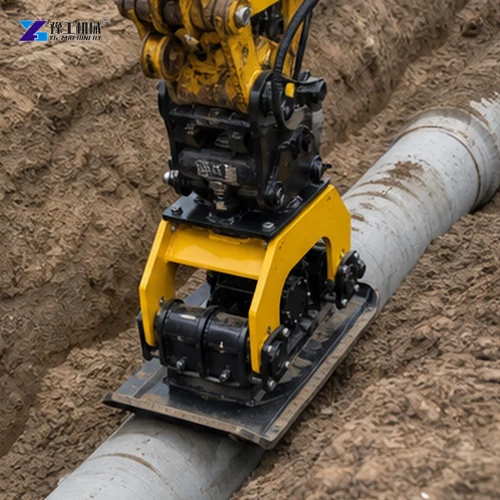

It can work in suitable trench applications, but clearance, pipe support, layer thickness and the project method must prevent contact or damage.
Send excavator model, linkage, hydraulics, trench dimensions, soil, lift requirement, working depth, destination and test standard.
Need help matching the configuration to your project? Send the working conditions and YG can review the practical equipment scope for Excavator Plate Compactor For Sale In The Netherlands.
Define The Soil Method Before Choosing The Plate
For a useful quotation, send YG the carrier information, trench or area dimensions, soil description, intended lift thickness, working depth and project location. Add drawings or photographs of restrictions and identify the acceptance test. YG can then review plate dimensions, attachment weight, hydraulic requirements and mounting and prepare a Netherlands proposal based on the actual compaction method.
For the next attachment decision, review the YG excavator quick coupler selection guide to confirm how the carrier can change tools safely and efficiently.
