A mortar spraying machine price is useful only when the offer identifies what will arrive and what the site must provide. A low machine-only figure can exclude the hose length, mixing equipment, electrical preparation or finishing work needed to produce an acceptable wall. Contractors should compare a working package, not simply the largest pump output printed beside a price.
YG lists electric and diesel mortar-spraying configurations with nominal outputs of 3 and 4 m³/h. Those figures describe material delivery, not completed wall area. This guide separates equipment cost from site preparation and operating cost so you can request comparable quotations. No current fixed YG selling price is stated here: an itemized offer is needed for the selected drive, material, hose route and destination.
What Does The Mortar Spraying Machine Price Actually Include?

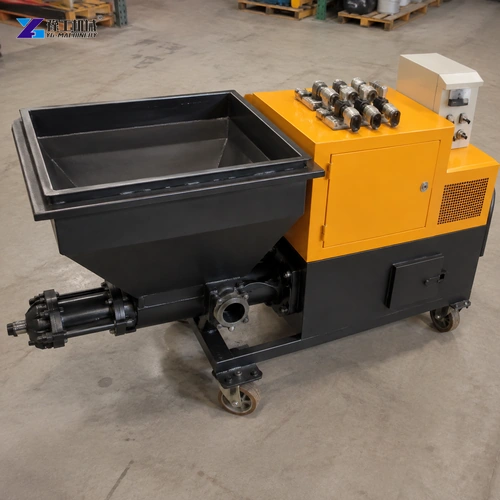

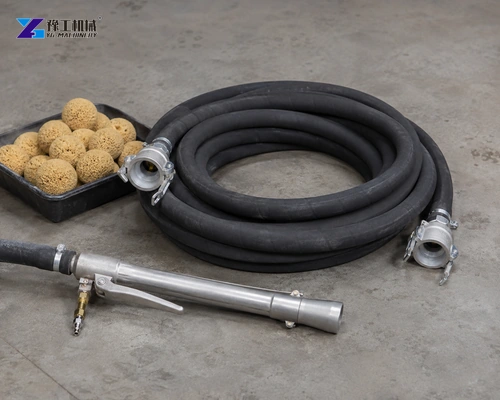

Start by defining the boundary of supply. The main pumping unit, drive, hopper and controls are one package; mortar hose, air hose, spray gun, nozzles and cleaning accessories may have separate quantities or specifications. Ask for the included length and connection details rather than accepting “complete accessories.” An unsuitable coupling or a missing hose section can delay commissioning even when the main machine is correct.
The mortar sprayer product page introduces the equipment function, but a purchase comparison also needs the equipment around it. State whether mortar arrives ready mixed or must be mixed on site. Identify who supplies the mixer, water connection, electrical distribution, material handling and any working platform. Spraying does not remove the need for safe access or subsequent finishing.
Keep logistics outside the equipment subtotal until the delivery basis is clear. Packing, freight, import charges and unloading depend on the agreed destination and responsibilities. Compare offers with the same destination and supply boundary; otherwise an apparently cheaper mortar spraying machine price may only represent a shorter list of obligations.
Send your material, intended hose length and existing site equipment. YG can identify which items belong in the supply package before preparing a price comparison.
How Does Electric Or Diesel Drive Change The Buying Decision?

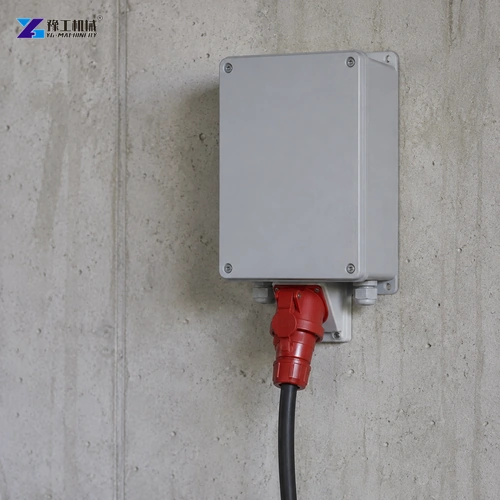

Electric drive deserves consideration where a suitable power supply is already available. Confirm the actual voltage, phase, frequency and starting requirements for the quoted configuration; a broad voltage range does not mean one machine can connect indiscriminately to every supply. Include cable routing and electrical preparation in the site budget. Diesel may suit a location without adequate electricity, but fuel arrangements, maintenance and exhaust management remain part of the decision.
The following published YG comparison describes two configurations, not guaranteed performance for every mortar. The source does not assign a separate model number to each column. Ask YG to identify the final model and configuration on the quotation rather than applying these values to another mixer-sprayer family.
| Specification | Electric Configuration | Diesel Configuration |
| Nominal Material Output | 3 m³/h | 4 m³/h |
| Published Drive Specification | 220–380 V / 7.5 kW | Diesel; Engine Rating To Be Confirmed |
| Published Pressure | 3 MPa | 3 MPa |
| Conveying Tube Diameter | 32 mm | 32 mm |
| Maximum Aggregate Size | ≤8 mm | ≤8 mm |
| Hopper Volume | 80 L | 80 L |
| Air Consumption | 0.3 m³/min | 0.3 m³/min |
| Listed Machine Weight | 320 kg | 320 kg |
| Horizontal Conveying Distance | 50 m | 50 m |
| Vertical Conveying Distance | 30 m | 30 m |
| Source Material-Proportion Entry | 1:1:3; Components Unspecified | 1:1:3; Components Unspecified |
Do not use the unexplained 1:1:3 entry as a mixing recipe. Material composition and suitability need confirmation. Likewise, the horizontal and vertical distances are separate published figures, not permission to combine both maxima in one route. The extra nominal output of the diesel option alone cannot establish a lower cost per finished square metre.
Which Material And Hose Choices Add Cost To A Mortar Spraying Package?
Material Preparation And Pump Wear
The stated aggregate limit is only one compatibility check. Gradation, consistency, fibers and additives affect how mortar enters the pump and moves through the line. Provide the product data sheet or mix information and representative material for review. A gypsum plaster machine may belong to a different mixing and pumping arrangement; do not assume that every material is interchangeable merely because both machines spray onto walls.
Ask which wear parts apply to the actual pump supplied and how they are inspected and replaced. Compare their availability and price as part of ownership cost, without assuming a fixed service life. Abrasive material, unsuitable consistency and poor cleaning can change maintenance demand. A useful mortar spraying machine price therefore identifies the pumping configuration as well as the drive type.

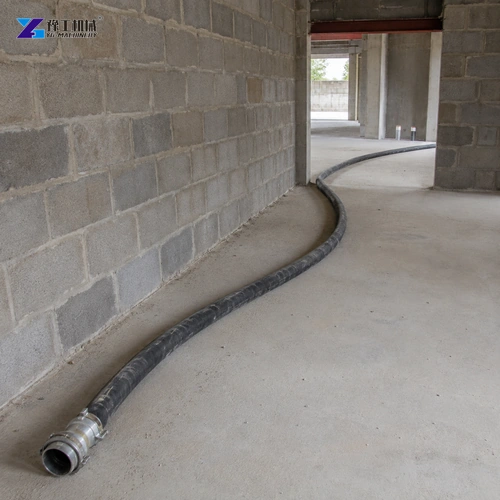

Hose Route And Delivery At The Nozzle
Measure the route that can actually be installed, including rises, bends and access around obstacles. Buying the longest available hose can add handling, cleaning and pressure loss without improving the work area. Conversely, a short included hose is not an advantage if the machine must repeatedly be moved between rooms. Ask YG to review the complete route against the proposed material and output.
Confirm pressure-rated hose, couplings and the spray-gun arrangement as a system. The air-consumption figure also needs a suitable supply at the required operating pressure; it is not enough to compare compressor tank size. Put these requirements into the offer so an accessory substitution does not silently change the proposed package.
Why Is Pump Output Not The Same As Low Wall-Finishing Cost?
Calculate material volume before estimating working time. For example, 100 m² at a uniform 10 mm thickness represents 1 m³ of placed mortar before allowances for an uneven substrate or losses. This is a geometric example, not a claim that the machine finishes that area in a particular time. Mixing, movement, nozzle work and leveling determine how much of a shift becomes useful production.

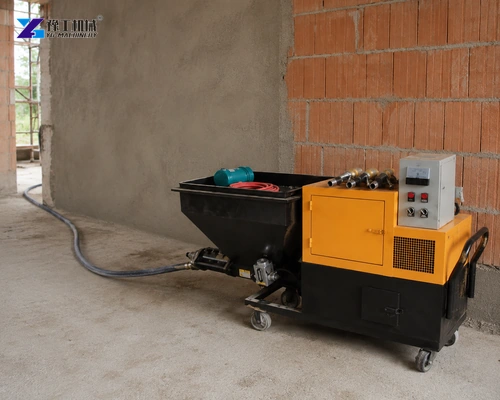

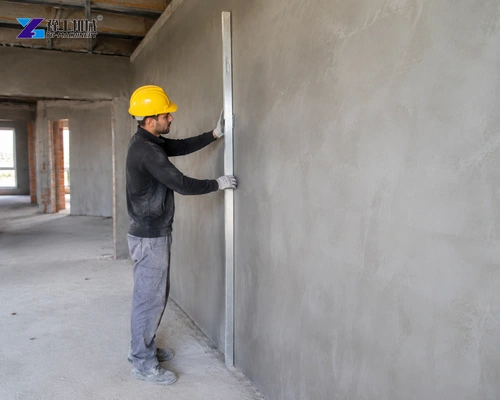

Separate spraying from achieving the specified finish. Corners, openings, substrate preparation and thickness correction can limit the crew even while the pump has spare capacity. An automatic wall plaster machine addresses a separate leveling operation and needs its own suitability review. Include only equipment that solves the actual bottleneck rather than buying a faster pump to compensate for slow downstream work.
For a meaningful trial, record accepted area, thickness, material consumed and elapsed crew time, including stops. Divide the day’s relevant operating cost by accepted area rather than by theoretical nozzle output. Use your own wage, energy and material figures; a universal savings percentage would conceal the differences between sites. This gives the mortar spraying machine price a practical context without inventing an investment payback.
Provide wall area, thickness, material supply method and the crew’s finishing sequence. YG can review whether the proposed output fits the whole operation rather than only the pump stage.
How Should You Compare The Final Mortar Spraying Machine Price Offers?
Use a common request listing drive, confirmed material, hose route, accessories and delivery destination. Require the quoted machine identification, included items and exclusions in writing. Separate the purchase amount from estimated site costs, and check currency, quotation validity and delivery responsibilities on the actual offer. Historical examples from another customer are not a substitute for a current quotation.

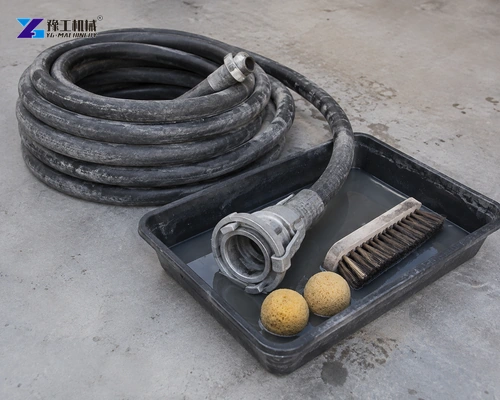

Include the cleaning arrangement and access to replacement parts. Mortar left in the equipment can turn a normal end-of-shift task into avoidable downtime. Plan water availability, containment and disposal under the site’s requirements, and follow the supplied isolation and pressure-release procedure before opening connections. Do not compare acquisition prices while omitting the daily work needed to keep the package usable.
Mortar Spraying Machine Price Questions From Buyers
Wall area helps, but thickness, mortar specification, supply method, power and hose route are also needed to define a comparable package.
No. Its higher listed output does not establish lower total cost. Compare site power availability, operating expenses and the complete crew cycle.
Do not combine those maxima. Submit the actual route and material so the proposed delivery arrangement can be checked.
Order the confirmed working length and compatible connections. Unneeded length adds handling and cleaning, while an inadequate route can force repeated moves.
The most useful mortar spraying machine price covers an agreed job and an explicit supply list. Prepare the mortar data, wall area and thickness, actual hose route, available power, existing mixing equipment and delivery location. With those inputs, the quotation can distinguish essential equipment from optional items and leave fewer costs unresolved when the machine reaches site.
