A useful hydraulic rock splitter price compares complete systems that can follow the same hole plan. The total changes with the power unit, splitter gun model and quantity, distributor, high-pressure hose, electrical or diesel drive, spare parts, packing and destination. A low main-unit figure cannot be compared with a package that includes several guns and a longer circuit.
The published YG portable range provides three product baselines. YG-250, YG-350 and YG-450 use listed drilling diameters of 42, 50 and 55 mm, minimum drilling depths above 500, 700 and 900 mm, and splitting forces of 800, 900 and 1000 tonnes. Compare prices only after the model and power-pack scope are fixed.
Review the verified system configuration on the hydraulic rock splitter for sale page before comparing quotation totals.
Hydraulic Rock Splitter Price by Working Package

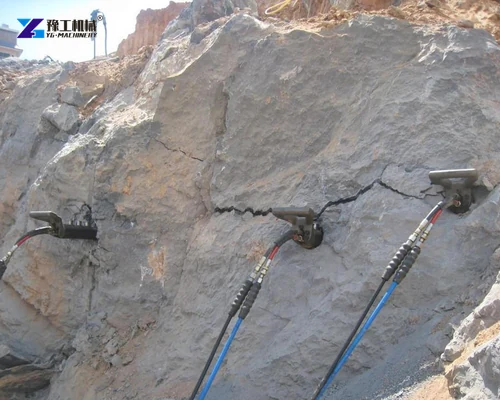

Define the splitting task before asking for totals. Record rock type, free face, block target, hole diameter, hole depth, daily hole count and work-zone access. The supplier can then identify whether one portable station and one gun are enough or whether the sequence needs a distributor and several compatible guns.
Ask every supplier to quote the same scope. Separate the power station, each gun, hoses, distributor, couplings, hydraulic-oil requirement, tool kit, spares, documents and packing. This makes hydraulic rock splitter price differences traceable to the supplied package.
Send the project material, dimensions and work-zone conditions for an initial model review.
Use YG Product Parameters to Compare Quotations
YG-250 lists a 250 mm wedge, 42 mm hole, depth above 500 mm and 800 tonnes of splitting force. YG-350 lists a 350 mm wedge, 50 mm hole, depth above 700 mm and 900 tonnes. YG-450 lists a 450 mm wedge, 55 mm hole, depth above 900 mm and 1000 tonnes.

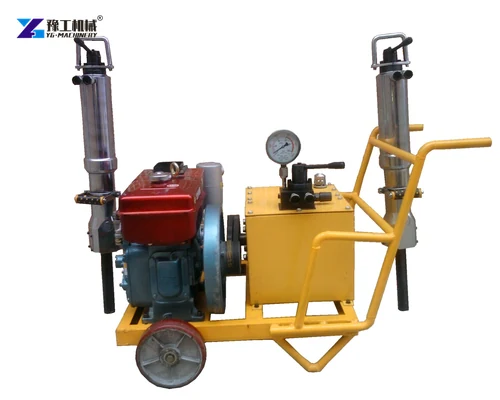

All three models list a 90/220 mm piston stroke, 10 to 20 mm crack width and 10 to 15 second splitting time. The published range identifies a Changchai 6 hp or 8 hp diesel power pack and an adjustable 10 to 60 MPa hydraulic power unit. Keep the drive option and model together when comparing quotations.
How Gun Quantity Changes Hydraulic Rock Splitter Price

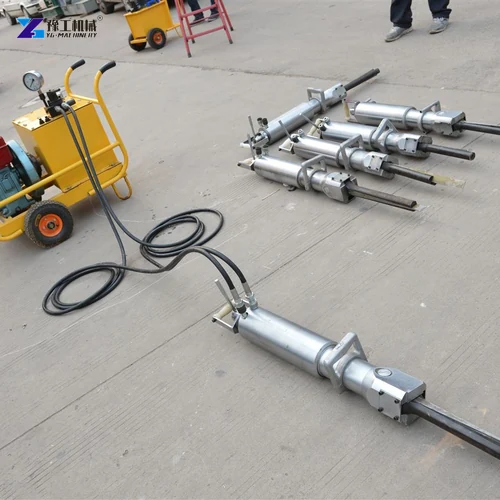

Each additional gun changes more than the tool count. The circuit may need a compatible distributor, extra high-pressure hose, couplings and a work plan that defines sequential or simultaneous operation. Confirm how many guns the selected station can serve under the intended cycle.
Crew capacity matters. More guns add value only when operators can prepare holes, place tools, observe the crack and release pressure safely. Use the planned hole sequence and shift target to justify quantity. A larger bundle that remains idle can cost more without increasing accepted rock removal.
| Product parameter | YG-250 | YG-350 | YG-450 |
| Splitter length | 1000 mm | 1100 mm | 1200 mm |
| Wedge length | 250 mm | 350 mm | 450 mm |
| Wedge weight | 30 kg | 36 kg | 43 kg |
| Piston stroke | 90/220 mm | 90/220 mm | 90/220 mm |
| Minimum drilling depth | >500 mm | >700 mm | >900 mm |
| Drilling diameter | 42 mm | 50 mm | 55 mm |
| Crack width | 10-20 mm | 10-20 mm | 10-20 mm |
| Splitting time | 10-15 s | 10-15 s | 10-15 s |
| Splitting force | 800 t | 900 t | 1000 t |
Parameter source checked against the YG hydraulic rock splitter product page. Confirm the final ordered model and revision in the signed quotation.
Share the required model scope so YG can verify the product data and included components.
Include Hose and Utilities in Hydraulic Rock Splitter Price
Measure the real route from the power unit to the farthest hole, including elevation, bends and protected crossings. Specify hose length by section and connection. Excess hose adds handling and inspection, while a short route forces unsafe repositioning. Ask for final pressure ratings and model compatibility on the quotation.
Confirm whether the quotation uses the published diesel power pack or another verified power unit. If electricity is proposed, request the exact motor, voltage, frequency and phase on the model sheet. Initial spares may include model-specific seals, wedges or connections, but the supplier should identify exact part numbers and quantities.
Provide the accessory and utility requirements for a complete working-package review.
Separate Packing, Freight and Import Costs
Machine weight, gun count, hose coils and crate design determine the shipment. Request packed dimensions, gross weight, package count and lifting method. The destination city or port and trade term are necessary for a comparable freight calculation.
Keep equipment value, optional items, packing, inland transport and international freight on separate lines. Import duty and local tax depend on destination rules and should not be presented as universal machine cost. This hydraulic rock splitter price structure lets the buyer update logistics without changing the technical comparison.
Send a Complete Rock Splitter Quote Request
Provide rock photographs, hole pattern, free face, required block size, work area, power supply, gun quantity, hose route, destination and delivery date. State the drilling equipment already available. If the project includes reinforced concrete, identify rebar and the parts that must remain undamaged.
Request the proposed model, product data, included units, exclusions, test scope, manuals, spares, packing and lead time. A comparable hydraulic rock splitter price should explain every configuration assumption. Unconfirmed site details remain open questions rather than hidden allowances.
Send the final site, quantity and destination details for a configured quotation.
Hydraulic Rock Splitter Price FAQ for Foundation Projects
Pump model, gun quantity, distributor, hose, spares, packing and destination can create different supply scopes.
Only when requested. This portable splitter uses prepared holes, so buyer-supplied drilling should be stated clearly.
No. Hole preparation, crew capacity, circuit design and splitting sequence determine whether extra guns are useful.
Provide destination, trade term, unloading limits and requested delivery date so packing and freight can be compared.
